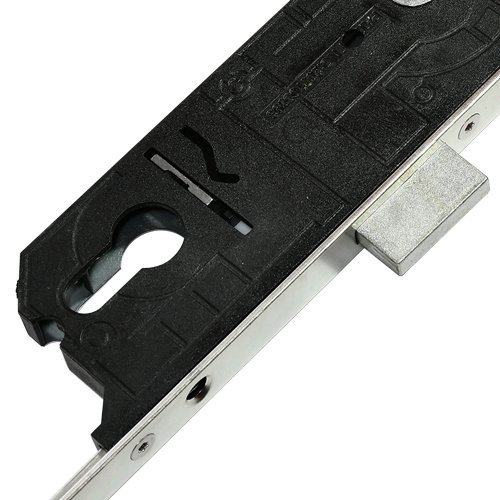

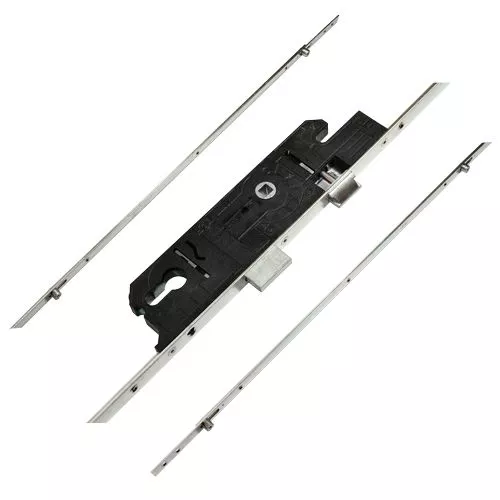

TSS Economy Compact Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
£14.48
This TSS multipoint door lock features 4 Rollers, 1 Deadbolt & 1 Latch.
Operation: Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
You may find this lock used as an UPVC door lock or an aluminium door lock.
Description
- Manufacturer: TSS
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down

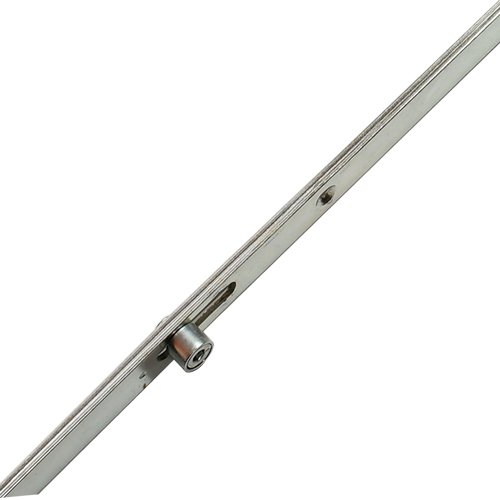

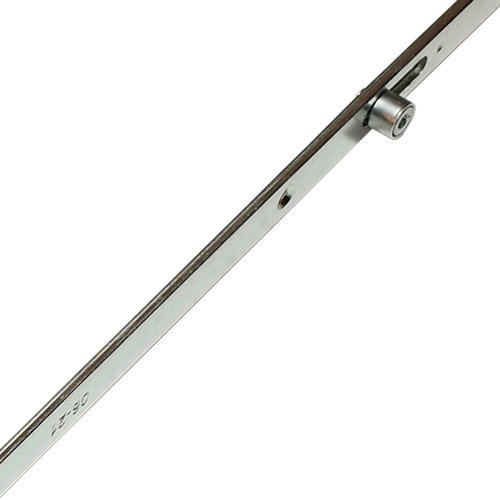

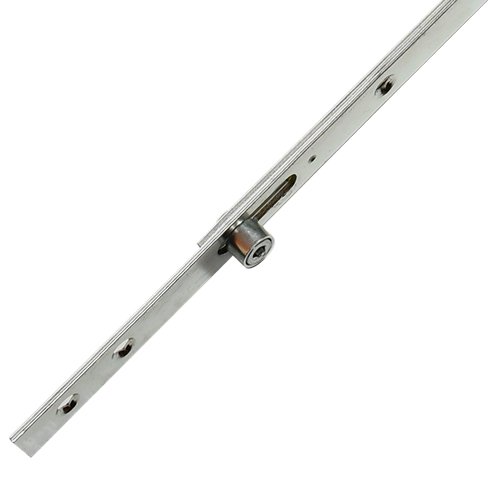

- Rollers: 4
- Deadbolts: 1
- Latch: 1

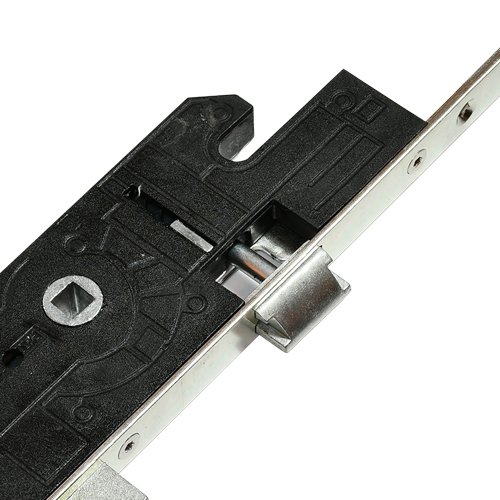

- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non handed

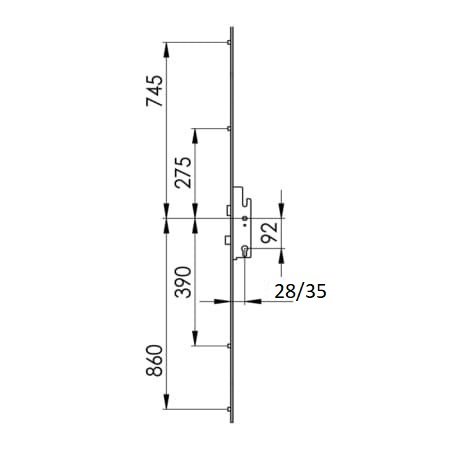

- Distance Between Inner Locking: 665mm
- Distance Between Outer Locking: 1605mm
- Height: 1800mm
- Top Roller to Spindle: 745mm
- Bottom Roller to Spindle: 860mm
- Door Material: UPVC, Aluminium
Additional information
| Backset | 28mm, 35mm, 45mm |
|---|---|
| Faceplate | Flat 16mm – Square Ends |
| Operation | Lift Lever |
