TSS Inline Espags 20mm Backset

Name: TSS Inline Espags 20mm Backset
Brand: TSS
SKU: 4964
Availability: InStock

Price range: £1.61 through £75.35

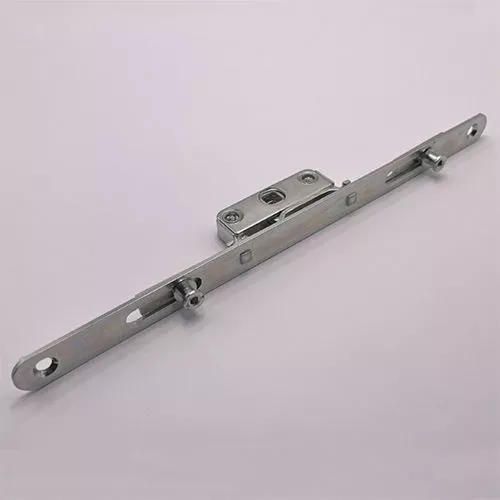

The TSS Inline Window Espagnolette range is a cost effective locking mechanism without compromising on quality.

The TSS Espag Range have a 20mm Backset with a 16mm Faceplate available in a wide range of sizes and a radius faceplate to suit most PVCu and Timber Requirements.

The espagnolette locks are available in 250, 400, 600, 800, 1000 and 1200mm lengths.

250mm to 800mm have 2x Mushroom Bolts
1000mm have 3x Mushroom Bolts
1200mm have 4x Mushroom Bolts

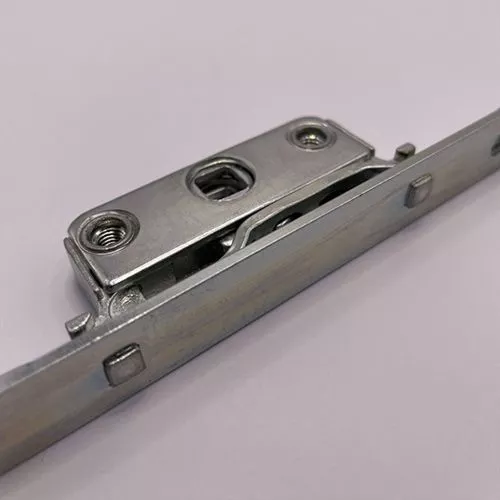

7mm Spindle Drive
20mm Backset

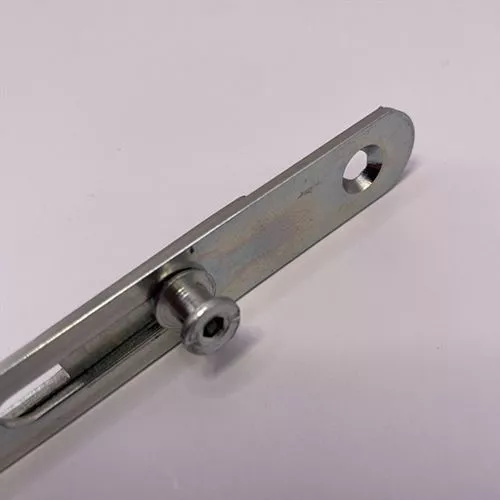

7mm (8mm) Mushroom Height
43mm Fixing Screw Centres (Suits Standard Espag Handles)
240 Hours Neutral Salt Spray Corrosion Performance
Minimum 40Nm Gearbox Torque Resistance
Sold in Singles or Trade Packs of 20x

Also available in 22mm Backset: see SKUs starting with TSSESP22

Length

Packaging

Clear

Add to wishlistAdd to compare

SKU: N/A Categories: Espags, Multipoint & UPVC, Window Locks Brand: TSS

Description
Additional information

Description

Lift handle to engage locking points
Various sizes available
Suitable for use with inline, left or right handed Espag Handles
Backset: 20mm
7mm Spindle Drive
7mm (8mm) Mushroom Height
43mm Fixing Screw Centres (Suits Standard Espag Handles)
240 Hours Neutral Salt Spray Corrosion Performance
Minimum 40Nm Gearbox Torque Resistance
Sold in Singles (loose) or Trade Packs of 20x

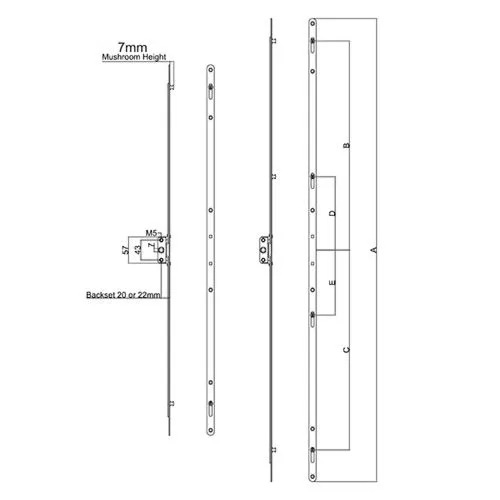

Mushroom Positions: Dimensions can be found in our line drawings images.

Length (Dim A)	No Of Mushrooms	Distance Between Outer Mushrooms	Dimension B	Dimension C	Dimension D	Dimension E
250mm	2	140mm	80mm	60mm	N/A	N/A
400mm	2	290mm	155mm	135mm	N/A	N/A
600mm	2	490mm	255mm	235mm	N/A	N/A
800mm	2	690mm	355mm	335mm	N/A	N/A
1000mm	3	890mm	455mm	435mm	155mm	N/A
1200mm	4	1090mm	555mm	535mm	155mm	135mm
