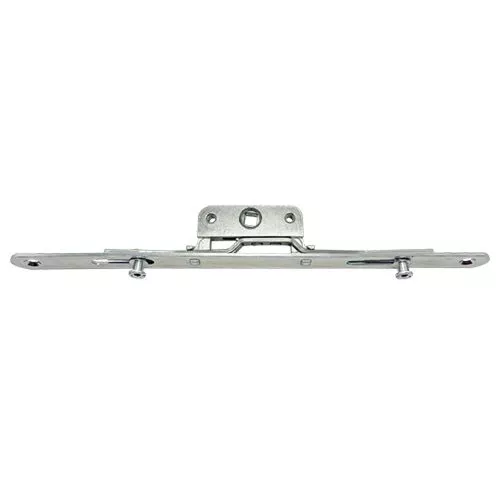

TSS Inline Espags 22mm Backset

TSS Inline Espags 22mm Backset

Price range: £1.66 through £78.04

The TSS Inline Window Espagnolette range is a cost effective locking mechanism without compromising on quality.

The TSS Espag Range have a 22mm Backset with a 16mm Faceplate available in a wide range of sizes and a radius faceplate to suit most PVCu and Timber Requirements.

The espagnolette locks are available in 250, 400, 600, 800, 1000 and 1200mm lengths.

  • 250mm to 800mm have 2x Mushroom Bolts
  • 1000mm have 3x Mushroom Bolts
  • 1200mm have 4x Mushroom Bolts
Add to wishlist Add to compare
SKU: N/A Categories: , , Brand:

Description

  • 7mm Spindle Drive
  • Backset:22mm
  • 7mm (8mm) Mushroom Height
  • 43mm Fixing Screw Centres (Suits Standard Espag Handles)
  • 240 Hours Neutral Salt Spray Corrosion Performance
  • Minimum 40Nm Gearbox Torque Resistance
  • Sold in Singles or Trade Packs of 20x

Also available in 22mm Backset: see SKUs starting with TSSESP20

Length (Dim A) No Of Mushrooms Distance Between Outer Mushrooms Dimension B Dimension C Dimension D Dimension E
250mm 2 140mm 80mm 60mm N/A N/A
400mm 2 290mm 155mm 135mm N/A N/A
600mm 2 490mm 255mm 235mm N/A N/A
800mm 2 690mm 355mm 335mm N/A N/A
1000mm 3 890mm 455mm 435mm 155mm N/A
1200mm 4 1090mm 555mm 535mm 155mm 135mm



Additional information

Length

1000mm, 1200mm, 250mm, 400mm, 600mm, 800mm
Packaging

Pack of 20, Single
