TSS Lever Moveable Pad UPVC Multipoint Door Handles – 68mm PZ Sprung 215mm Screw Centres
Price range: £13.05 through £15.95
The TSS moveable pad multipoint door handle is a high-quality multipoint door handle that is available in a range of finishes including White, Black, Polished Chrome, Silver, Gold and Polished Brass.
This handle has a backplate measuring 245mm and screw centers measuring 215mm. It is a durable and reliable handle, The handles have undergone cycle testing of over 50,000 operations. The Polished Chrome, Silver, and Polished Brass finishes have undergone salt-spray testing for over 240 hours.
This handle is compatible with most 68mm PZ multipoint locks.
They are supplied as a pair complete with fixings consisting of the spindle, 2x Spring Cassettes & 2 colour coordinated screws.
Description

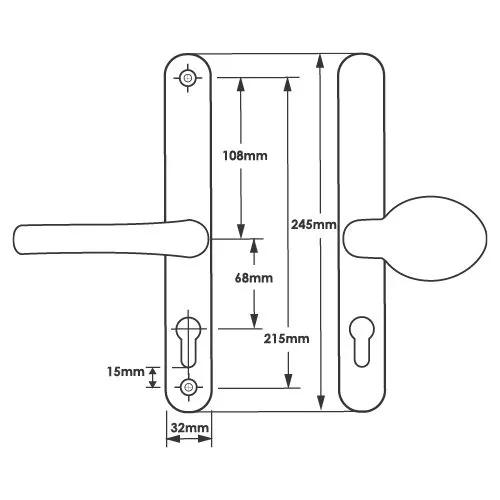

- Sprung
- Length: 245mm
- Width: 32mm
- Centres (PZ): 68mm
- Screw centres: 215mm
- Base of euro to bottom screw: 15mm
- Top screw to spindle: 108mm
- Non-handed
- Packaging: Boxed
- Supplied as a pair

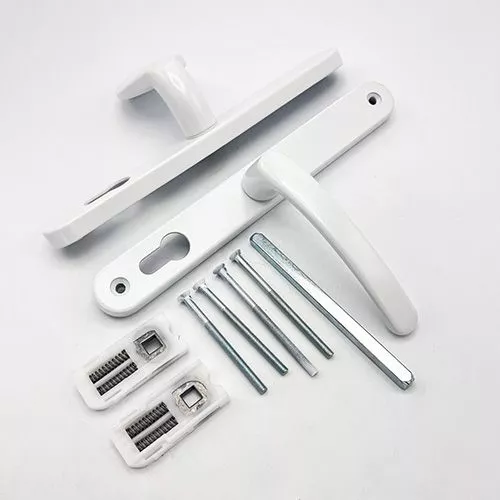

Supplied with:

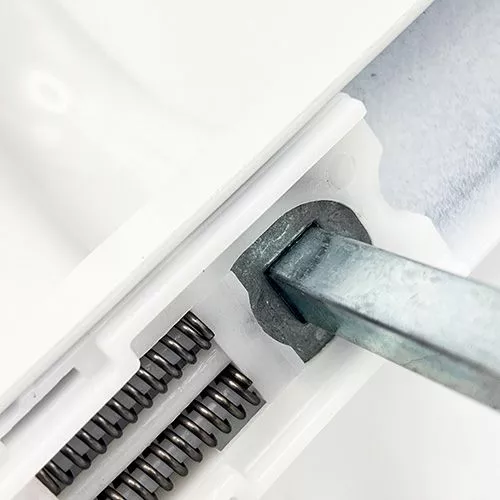

- x2 spring cassettes
- x4 colour coded screws
- x1 spindle (125mm x 8mm)
Additional information
| Colour | Black, Brass Effect, Chrome, Silver, White |
|---|
