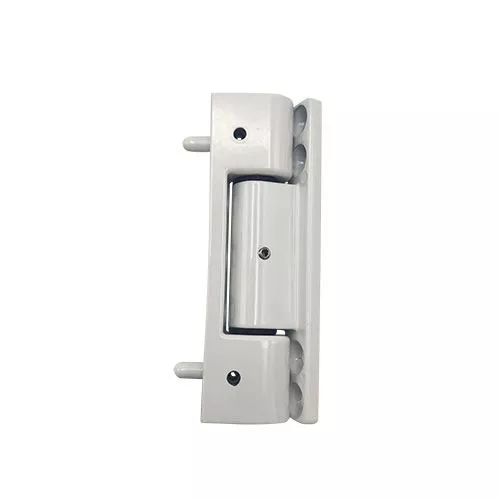

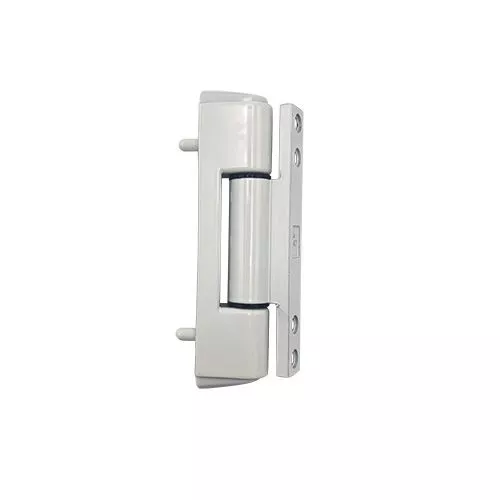

TSS UPVC Butt Hinge 112mm
TSS UPVC Butt Hinge 112mm
TSS UPVC Butt Hinge 112mm
TSS UPVC Butt Hinge 112mm
TSS UPVC Butt Hinge 112mm

TSS UPVC Butt Hinge 112mm

£8.33

TSS UPVC Butt hinges are designed to suit most UPVC profiles. 2D adjustment with supplied Allen keys which allows for final adjustments and alignment.

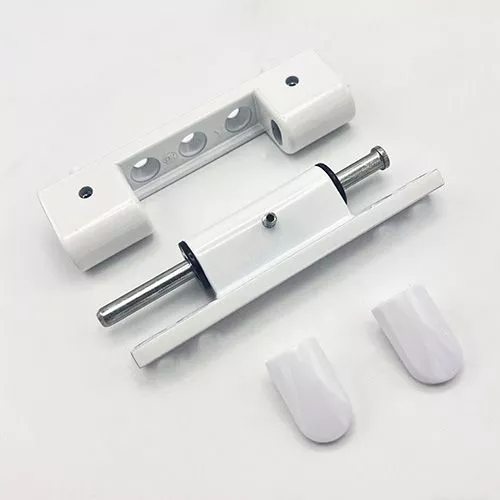

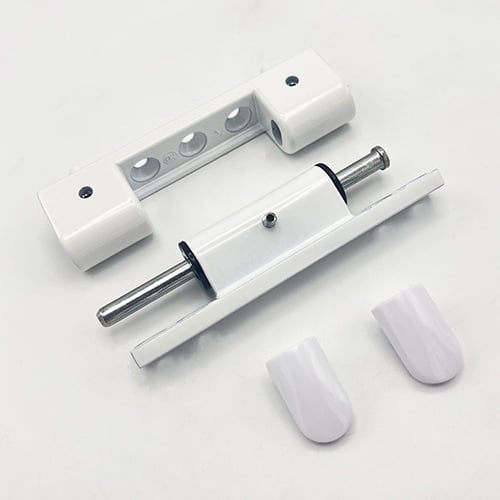

Integral fixing lugs and 7 screw fixing positions for optimal stability and strength. Security anti-lift pin which prevents pin removal and lifting out the door.

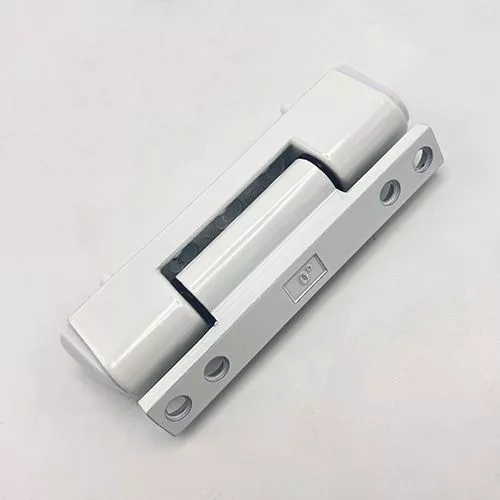

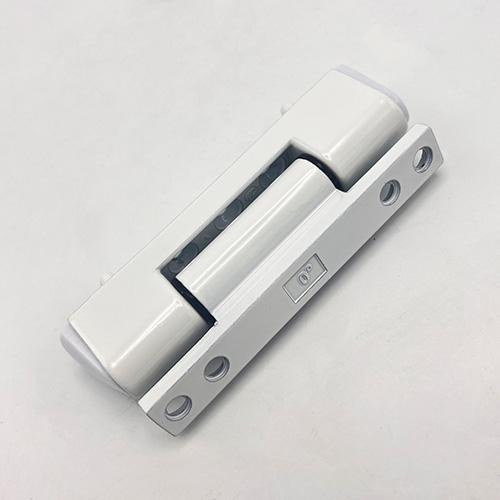

Available in 2 different chamfers (0 and 5 degrees).



Add to wishlist Add to compare
SKU: N/A Categories: , ,

Description

  • Manufacturer: TSS
  • Colour: White

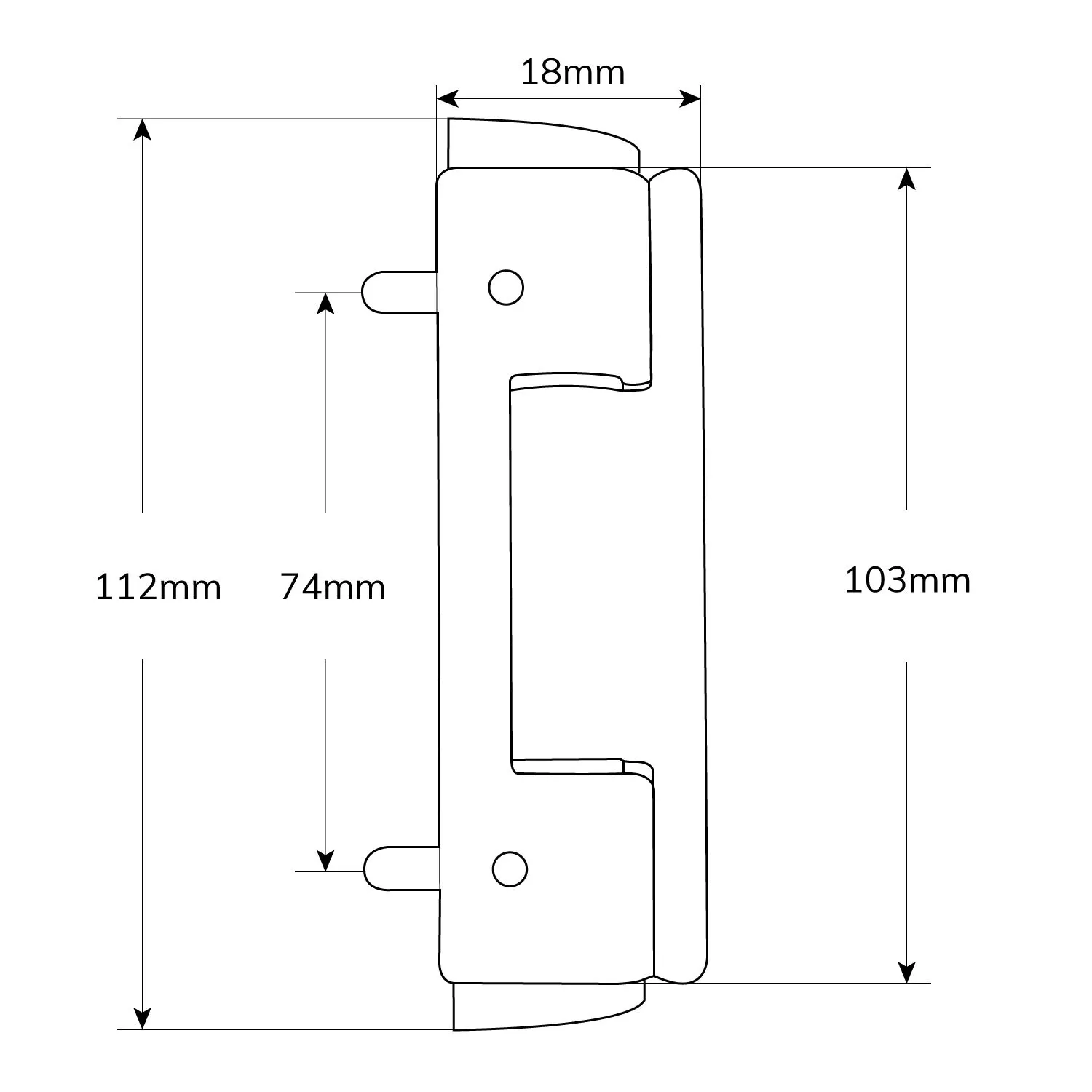

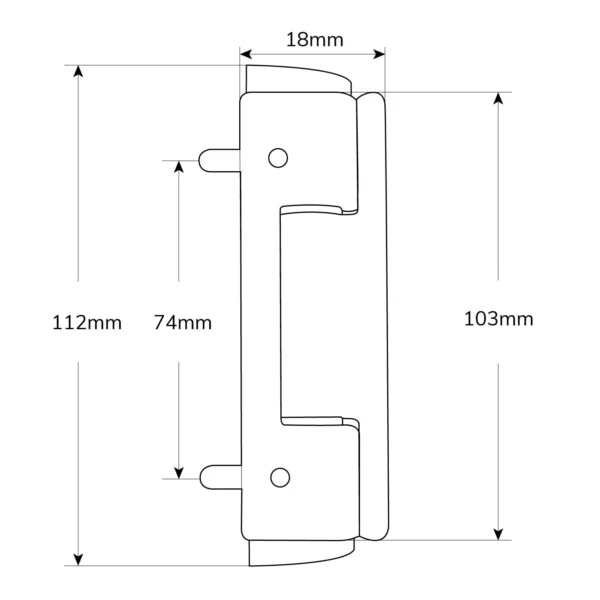

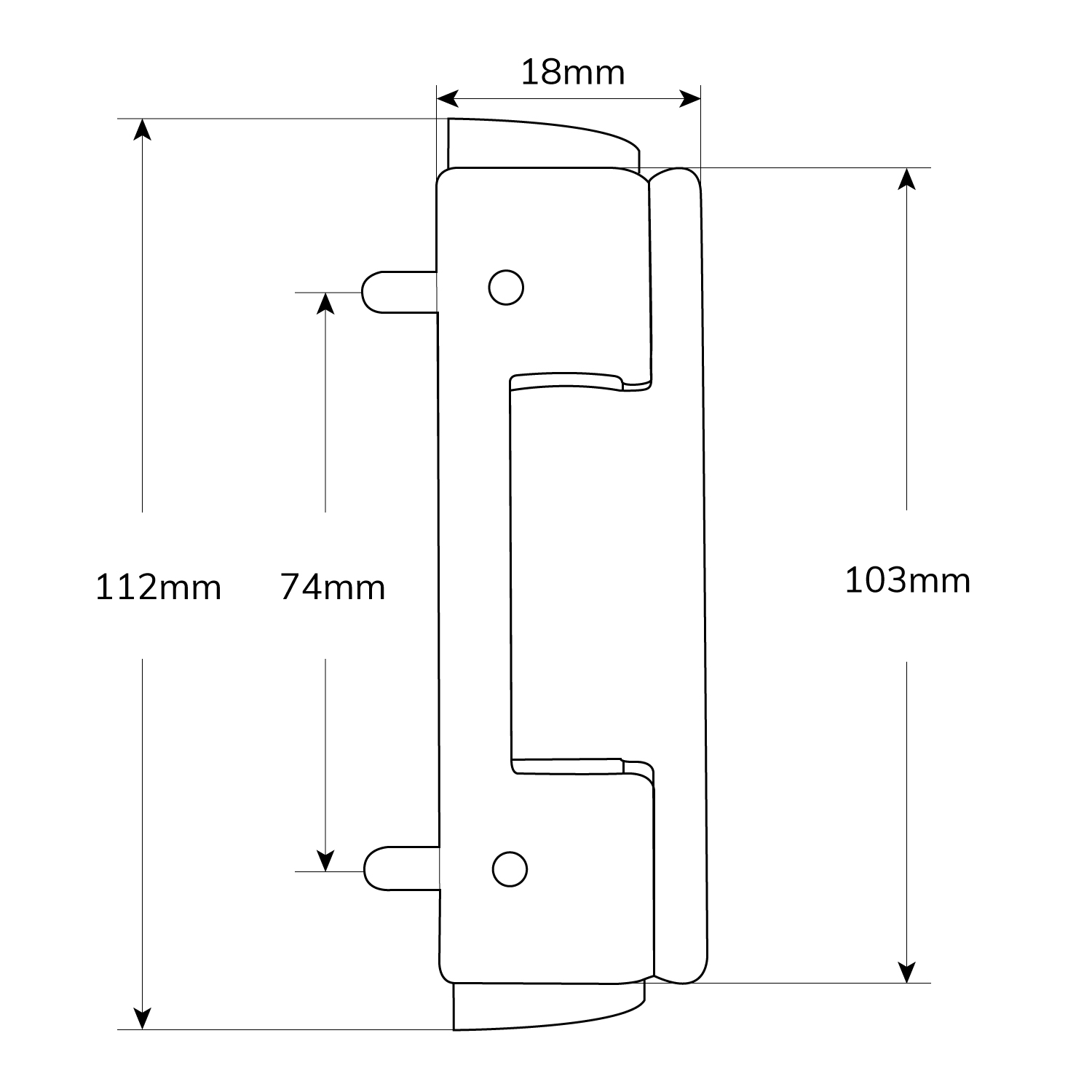

  • Height: 103mm (112mm with End Caps)
  • Width: 18mm
  • Distance Between Pins: 74mm
  • Screw Centres 1st to 4th: 90mm
  • Screw Centres 2nd to 3rd: 63mm
  • Salt Spray Tested to 480 Hours (BS EN 1670: Class 5)
  • Tested to 200,000 cycles
  • Tested with 3 Hinges up to 60kg Sash Weight
  • Adjustment: Horizontal Adjustment (toe & heel) of +/- 2mm

Additional information

Profile Angle

0 Degrees, 5 degrees
