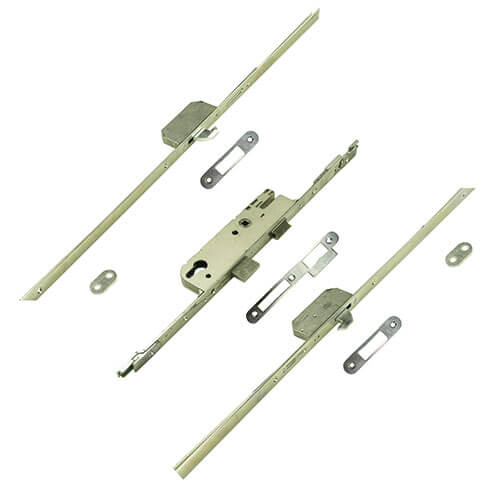

VERSA Latch Deadbolt 2 Hook Split Spindle Timber and Composite Repair Multipoint Door Lock
Price range: £92.48 through £113.97
The V-MPLT has all of the features of the normal VERSA lock but is specifically designed for timber and composite doors and features a 20mm faceplate.
Supplied in 3 parts with serrated shoe connectors and UPVC keeps, this lock can be cropped to replace the majority of multipoint locks in the UK market
Adjustable packers mean that keeps will fit any profile.
The 35mm and 45mm backset locks feature a split spindle.
Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at the same time. Reverse and reinsert
Nightlatch reversal: Remove the latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees then return latch to the correct position.
Description

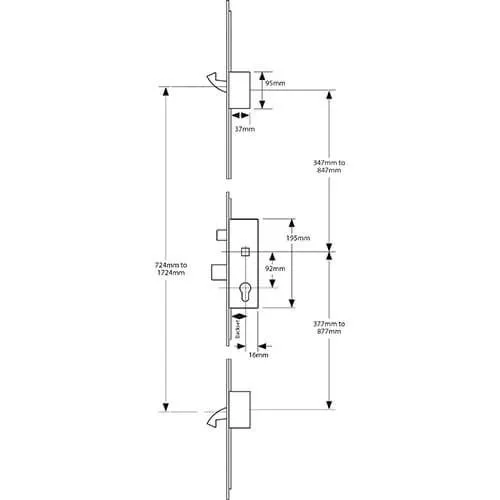

- Centres: 92mm
- Length: Maximum 2430mm / Minimum 1405mm
- Case height: 195mm
- Case depth: Backset + 16mm
- Maximum top hook to spindle: 847mm
- Minimum top hook to spindle: 347mm
- Maximum bottom hook to spindle: 877mm
- Minimum bottom hook to spindle: 377mm
- Specific locks and keeps are designed to suit Timber or composite door profiles.
- Non handed reversible latch.

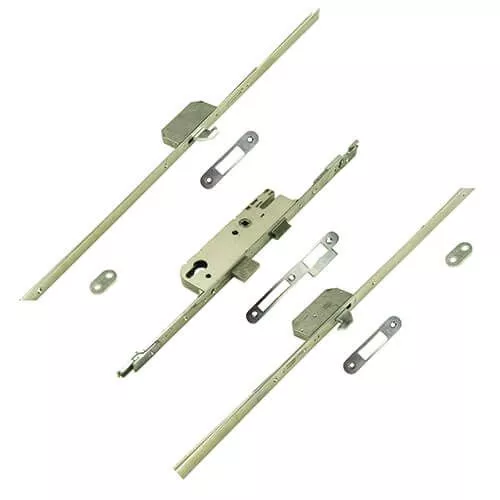

- Supplied with: Central gearbox section, x2 hook extension pieces, x1 latch and deadbolt, x2 hook and roller keeps, x2 frame fixing tabs, adjustable packers to suit any profile
- Supplied boxed in singles
- Supplied with: Central gearbox section, x2 hook extension pieces, x1 Latch and deadbolt keep, x2 Hook and roller keeps, x2 frame fixing tabs, adjustable packers to suit any profile
Additional information
| Backset | 35mm, 45mm, 55mm |
|---|---|
| Operation | Lift Lever, Lift Lever Or Split Spindle Nightlatch |
