VERSA Latch Deadbolt 4 Rollers Lift Lever Universal Repair Multipoint Door Lock
£41.98

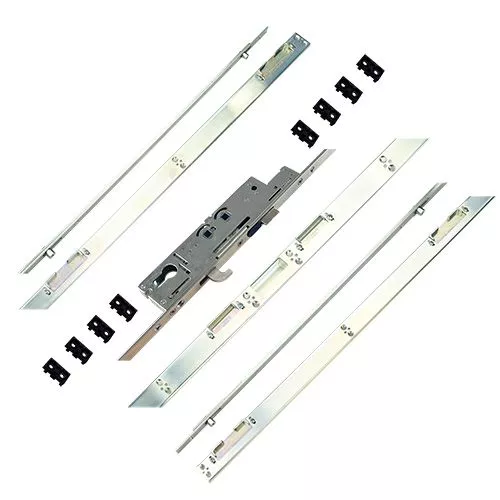

The V-MPL 4 Roller multipoint is a 1 piece, short length (1760mm) lock to suit any door size and can replace 99% of 28mm, 30mm, 35mm or 45mm backset multipoint locks on the market.
Cover up the existing mess with the reversible full-length keep.
Adjustable packers mean that keeps will fit any profile.
Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at the same time. Reverse and reinsert
Nightlatch reversal: Remove the latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees then return latch to the correct position.
Description

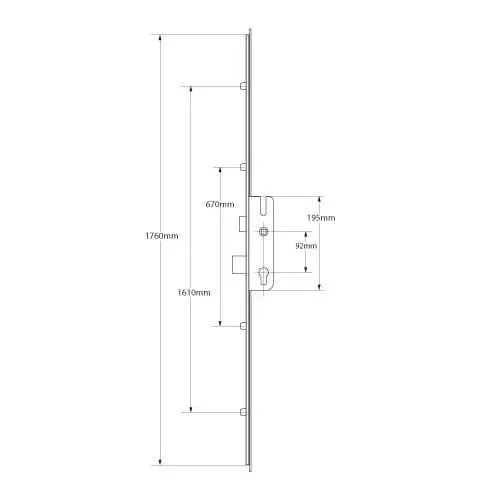

- Centres: 92mm
- Case height: 195mm
- Case depth: Backset + 18mm
- Overall length: 1765mm
- Distance between outer rollers: 1610mm
- Distance between inner rollers: 670mm
