VERSA Lite Latch, 3 Hook, Lift Lever Repair Multipoint Door Lock
£48.98

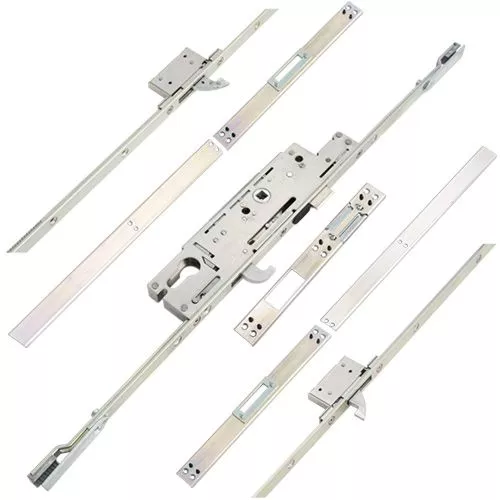

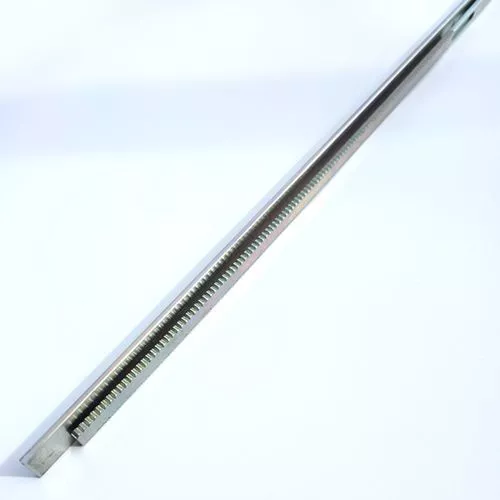

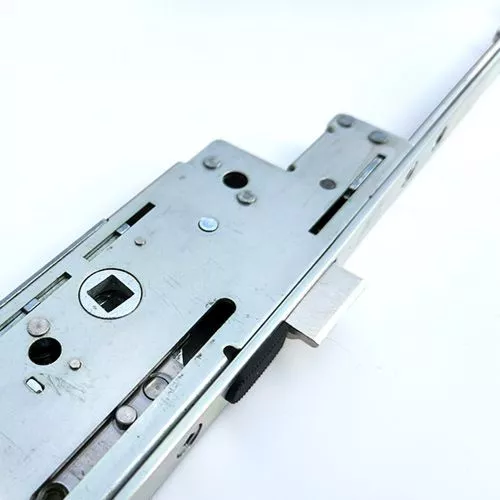

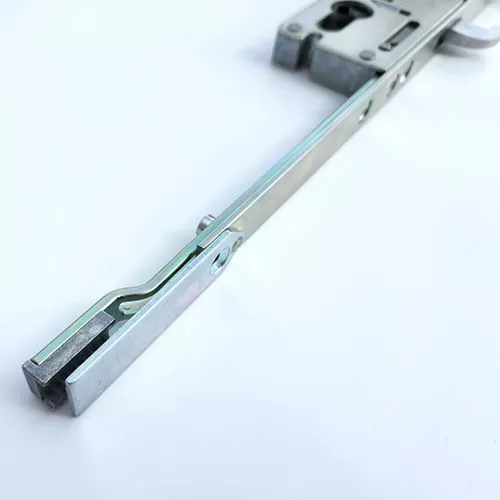

The VERSA LITE multipoint lock is a UPVC repair lock which comes in 3 pieces. A centre section with a faceplate adapted to receive the top and bottom extension pieces, The extension pieces each have 300mm of serrated teeth meaning they can be cropped to adjust the hook centres between 1033mm – 1492mm.
The hook cases on this versatile lock are small measuring 55mm in height and just 25mm in depth, this means you don’t need to chop out customers’ doors onsite.

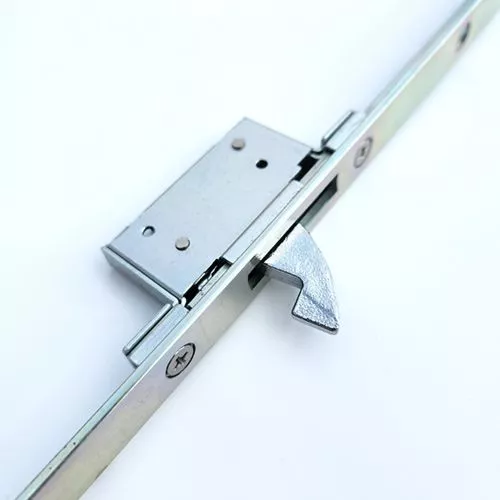

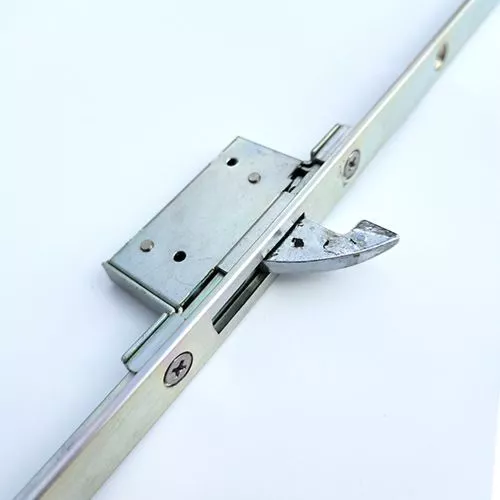

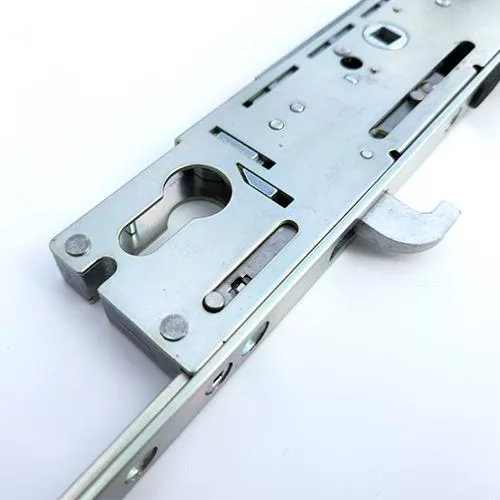

This lock comes with 3 hooks. 1 on each extension piece and another on the lock case for greater security *Note hooks will fit in the same keeps as deadbolts so if you want to use the existing keeps you can!
This product comes with 2 hook keeps and a centre keep which are both easily and fully adjustable to suit any profile – no packers needed.
The VLITE MPL is available in 2 backsets either with a split spindle or double. 35/92, 35/92/62, 45/92,45/92/62
The lock also comes with cover plates for a neat finish and a generous amount of repair screws.

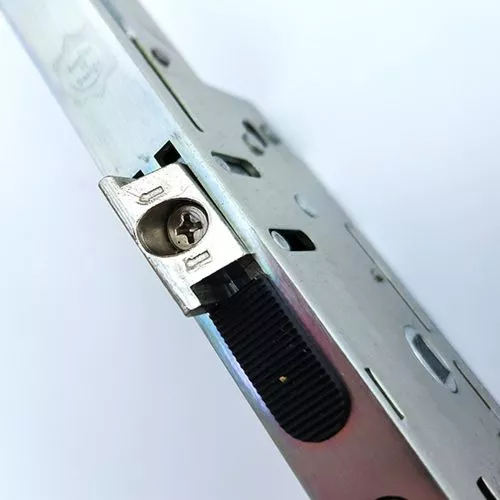

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace the screw.
For compatible shootbolts, see the related products section on this page.
Description
- Available in 35mm or 45mm backsets
- Flat 16mm faceplates with square ends
- Available as either a single split spindle version or a double spindle version
- Centres for the split spindle version are 92mm, and centres for the double spindle version are 92mm/62mm

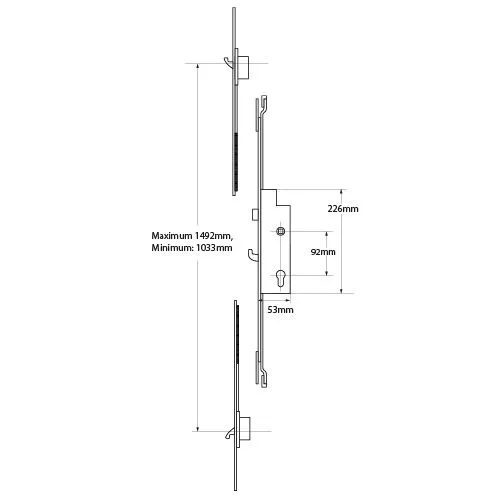

- Distance between hooks: Maximum 1492mm, Minimum: 1033mm
- Case Height: 226mm
- Case Depth: Backset + 16mm
- Maximum top hook to spindle: 724mm
- Minimum top hook to spindle: 445mm
- Maximum bottom hook to spindle: 776mm
- Minimum bottom hook to spindle: 479mm
- Non-handed, reversible latch
- Supplied with: Central gearbox section, x2 hook/roller extension pieces, x1 centre keep, x2 Hook keeps
- Supplied in single tubes.
Additional information
| Backset | 35mm, 45mm |
|---|---|
| Operation | Lift Lever Or Double Spindle Nightlatch, Lift Lever Or Split Spindle Nightlatch |
