Alpro Ems1200 Mini Shear Magnet

Name: Alpro EMS1200 Mini Shear Magnet
Brand: Alpro
SKU: ALPSHEARM-SET
Availability: InStock

✔️ In Stock

Price range: £267.78 through £359.32

description

Type

Clear

SKU: ALPSHEARM-SET Categories: Access Control, Alpro, Locking Devices, Magnets, Manufacturer Tag: Alpro Brand: Alpro

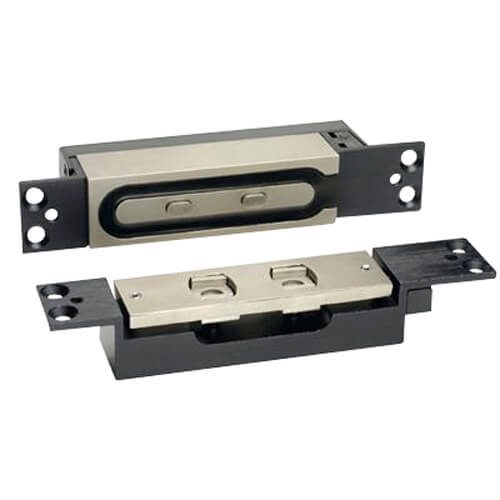

High quality Alpro mini shear Magnets, used in applications where the armature is required to pass over the face of the Magnet. Compatible with timber, steel, aluminium and glass frames (depends on selected model). Suitable for Internal use.

Current Consumption: Pull in 1150mA at 12V DC 1550mA at 24V DC, Holding 290mA at 12V DC 160mA at 24V DC.
Dimensions: (H) 163mm x (W) 30mm x (D) 35mm.
Holding Force: 1200KG, 5 Star strength grade C.

Description

High quality Alpro mini shear Magnets, used in applications where the armature is required to pass over the face of the Magnet. Compatible with timber, steel, aluminium and glass frames (depends on selected model). Suitable for Internal use.

Current Consumption: Pull in 1150mA at 12V DC 1550mA at 24V DC, Holding 290mA at 12V DC 160mA at 24V DC.
Dimensions: (H) 163mm x (W) 30mm x (D) 35mm.
Holding Force: 1200KG, 5 Star strength grade C.

Additional information

description	Mortice Mounted with Monitoring, Mortice Mounted with Monitoring. Glass door version, Surface Mounted with Monitoring
Type	Mortice Shear, Surface Shear
