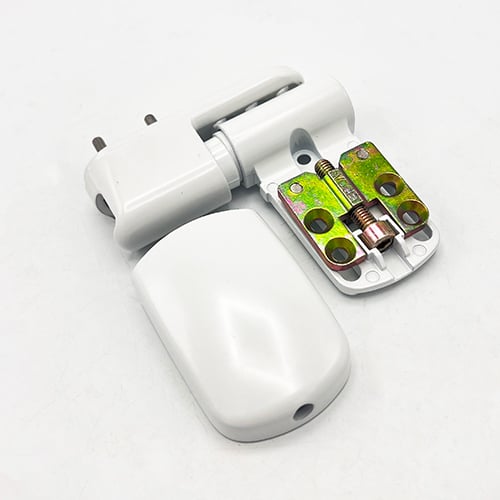

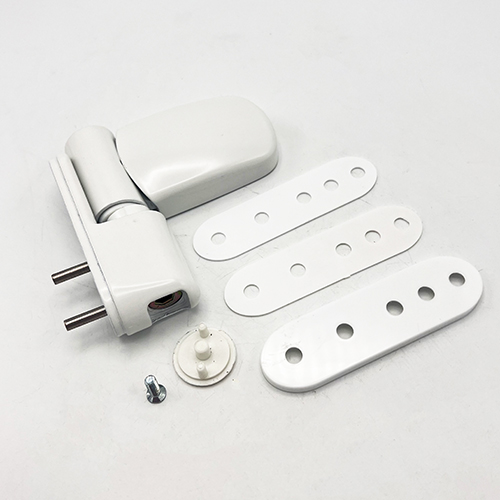

Avocet Triad Mini 3d Flag Hinge For Upvc Doors

Description

The Avocet Triad Mini 3D Flag Hinge for UPVC Doors is an aesthetically pleasing 3D Hinge to suit rebate heights 12-16mm+ (19mm with packers). 3-way adjustment combining product excellence with ease of fabrication

Simple allen key adjustment enables door movement to be compensated for without the need of an installation engineer.

Standard profile hinge. Suits doors up to 90 (3 hinges).

Endurance tested to 100,000 operations Load tested to 100kg on 3 hinges

All finishes meet the requirements of BS EN 1670 – grade 5.
