Era Bifold Replacement Passive Multipoint Gearbox

Description

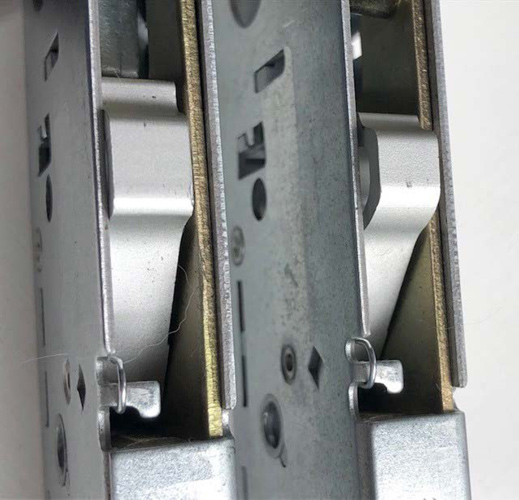

Available as either a large or small air gap variant. Large air gap is on the right in the photo above.

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.
