Exidor Fd322 Outside Access Device – Lever Handle With Euro Cylinder – For Timber Or Metal Doors

Description

Exidor 322 Outside Access Device for Timber or Metal doors.

Lever version with euro cylinder.

• Operation:
• When locked ,the lever is disengaged from the mechanism and still pulls down therefore preventing unauthorised entry.
• When unlocked, the lever,spindle and mechanism engage allowing the shoot bolts,latch or pullman latches to be withdrawn from outside of the door.
• Once the door is opened from the inside or outside the lever remains unlocked until re-locked with a key – The unit is NOT self locking.

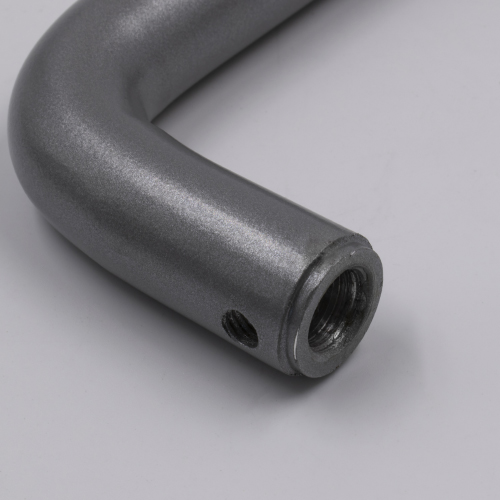

• Lever variant is attached to the body by a shear pin. In the event of severe abuse, the shear pin will break protecting the mechanism, the shear pin can then be replaced.
