Description

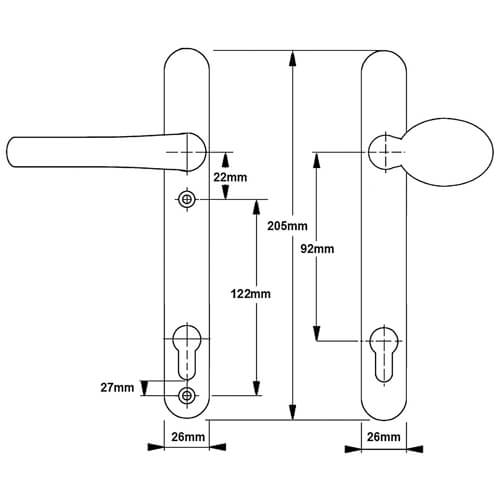

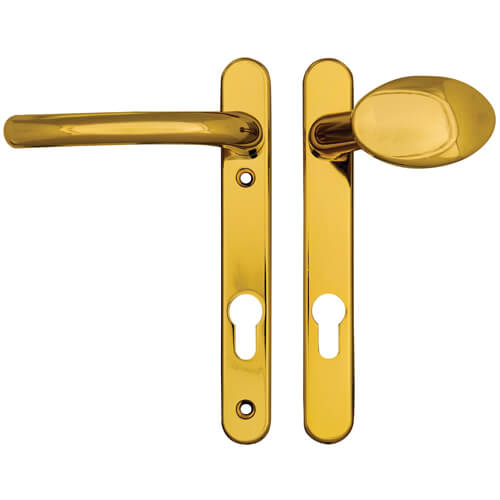

These Fab & Fix handles from the Windsor range have a sprung 92pz internal lever handle and external moveable pad. With a backplate of 205mm x 28mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.
rn

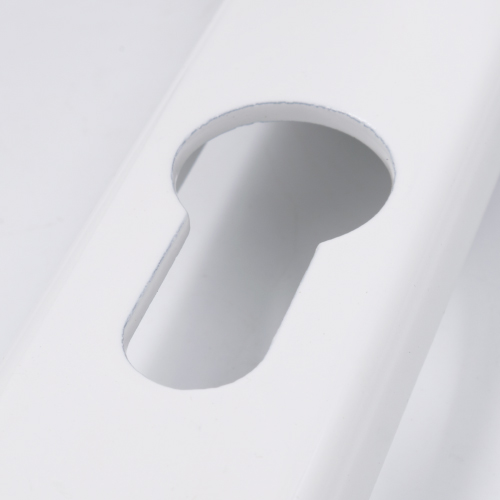

The distance between the fixing screws is 122mm with the bottom screw positioned 23mm below the euro profile cut-out.
rn

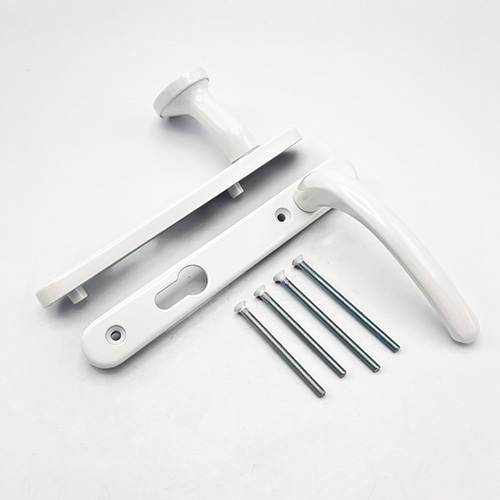

They are supplied as a pair complete with 2 colour co-ordinated screws. Spindle to be ordered seperately, see spindle options and ordering codes below.
rn
- rn
- Solid spindle – TSSSPIN8
- Split spindle – V-SPLITSPIN
rn
rn
rn
