Hoppe London Lever Lever Upvc Multipoint Door Handles – 48mm Pz Sprung 215mm Screw Centres

Description

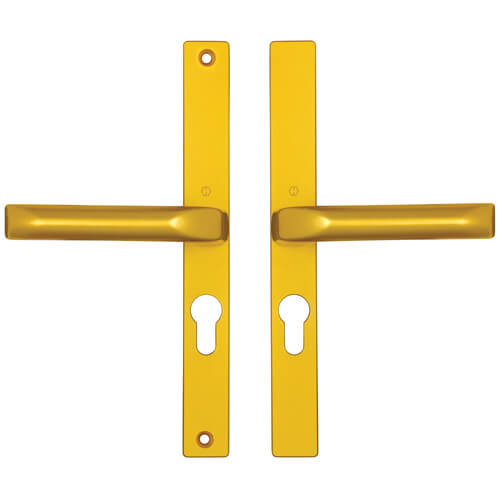

These Hoppe handles from the London range have sprung 48pz internal & external levers. With a backplate size of 235mm x 28mm they are available in various finishes and are commonly used on aluminium doors. Please note they are not suitable to be used with Union 3 point locking systems such as L22180, L22174 & L22172.

rn

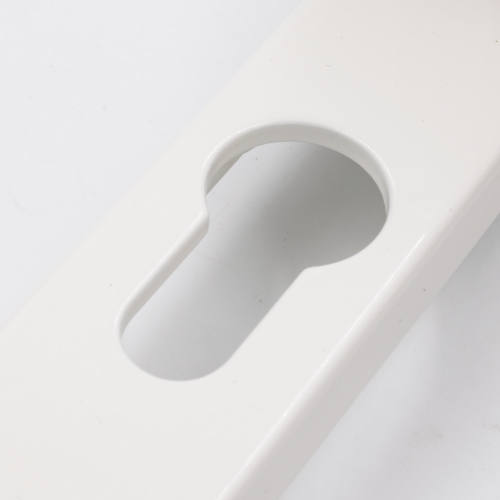

The distance between the fixing screws is 215mm with the bottom screw positioned 50mm below the euro profile cut-out.

rn

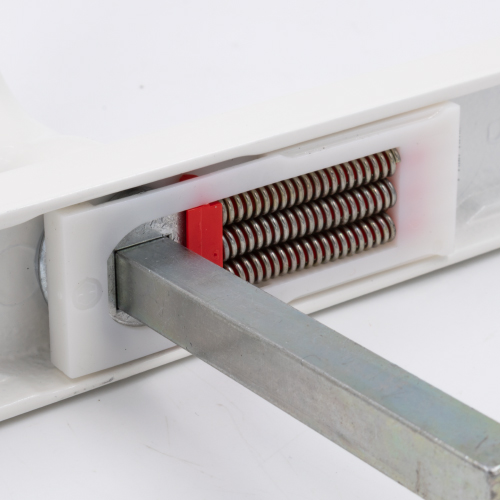

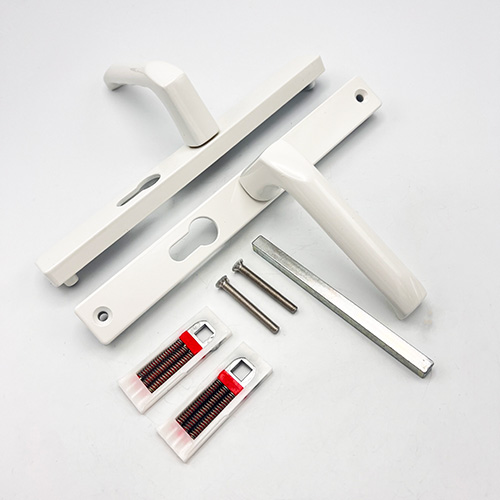

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 47-56mm.
