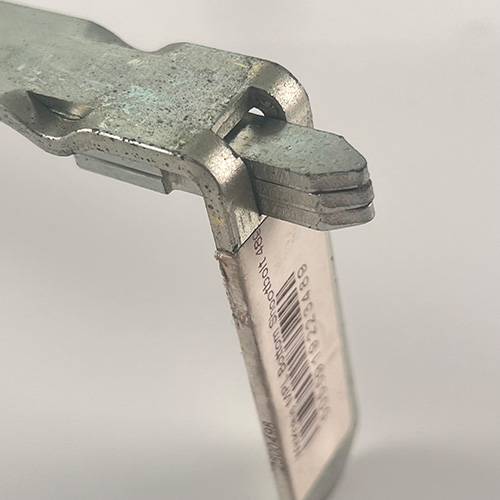

Winkhaus Bottom Shootbolts – Normal Action

Description

Winkhaus normal action bottom shootbolts for use with Winkhaus multipoint locks with serrated connecting shoes.

rn

rn
• 2500480 – Length 175mm, Width 20mm, Shootbolt throw 22mm

rn

• 2930754 – Length 372mm, Width 20mm, Shootbolt throw 22mm

rn

• 2500498 – Length 489mm, Width 20mm, Shootbolt throw 22mm

rn

• 2096392 – Length 773mm, Width 20mm, Shootbolt throw 22mm

rn

rn

A shootbolt keep is not supplied and can be ordered separately, see below ordering codes for the associated keeps.

rn

rn
• RD55185X – Shootbolt keep

rn

• 2836531 – Double pocket shootbolt keep
